Nukeson Spray Booth with Turntable & Roof Opening for Crane Loading

“Built for Big Jobs, Smooth Coating, and Heavy-Duty Spray Control.”

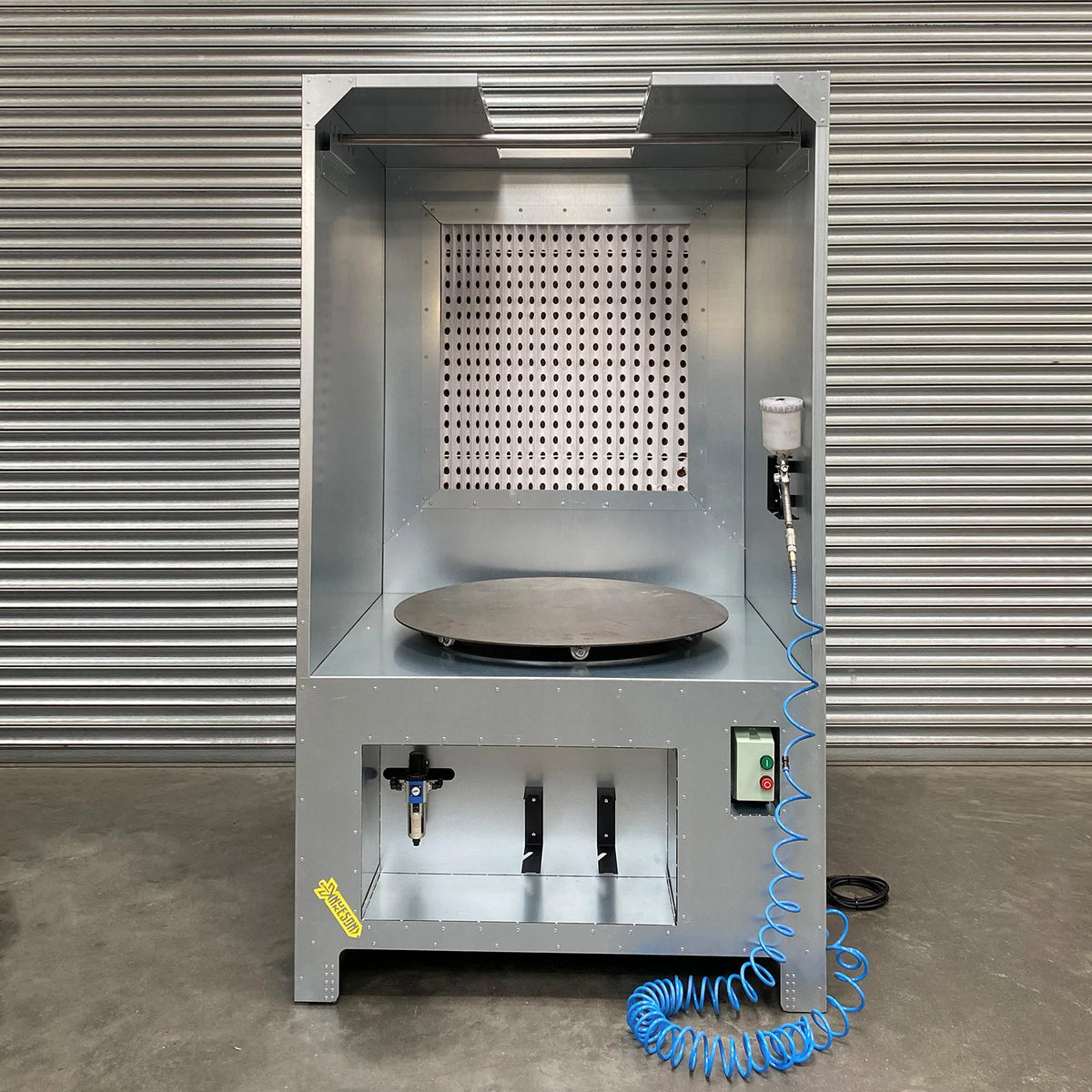

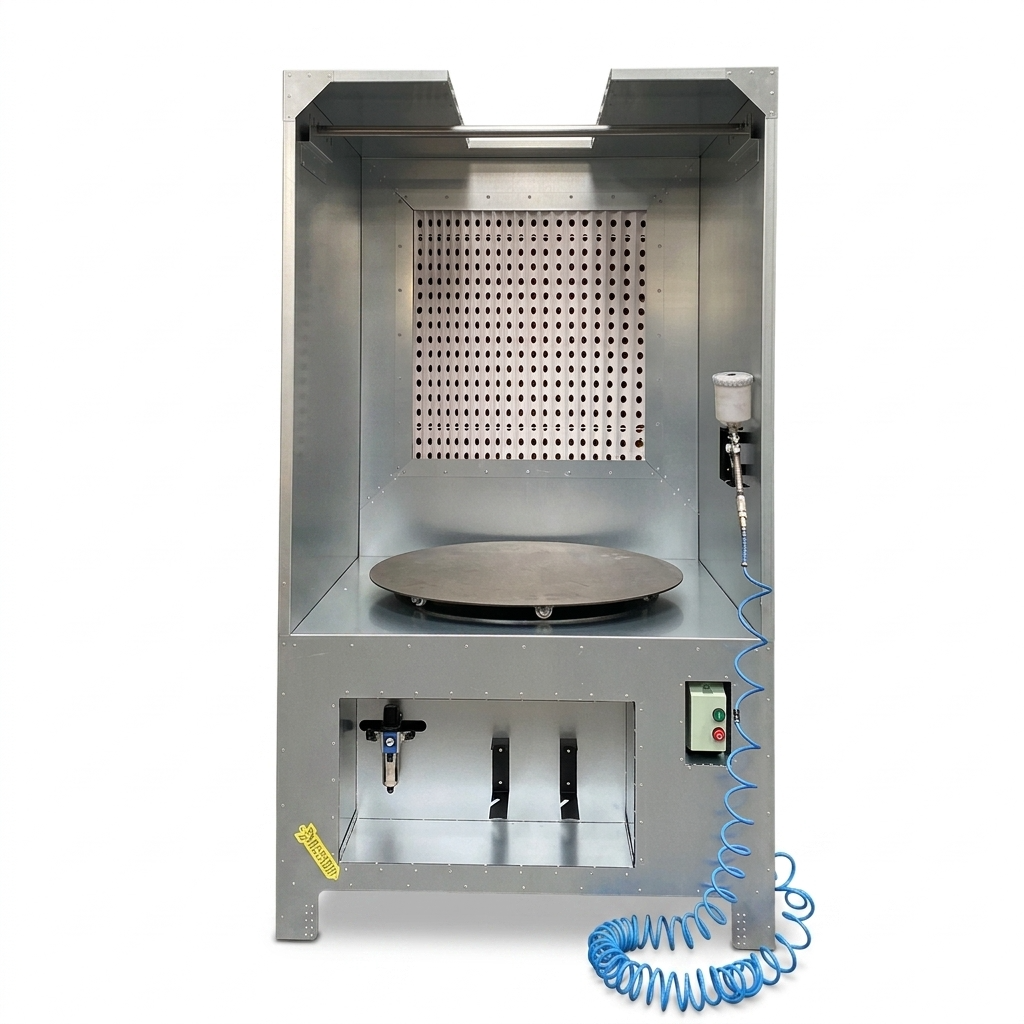

The Nukeson FORGE Wet Spray Booth is a rugged, industrial-grade solution for spray painting large or awkwardly shaped items—right from your garage or workshop to full-on commercial use. Designed and manufactured in the UK, this heavy-duty booth comes fully assembled and features a roof panel opening for crane-loaded items and a 900mm integrated turntable to rotate parts with ease during spraying.

Compatible with leading spray gun brands and ideal for aerosol applications, this booth brings professional-grade performance into your space—with built-in storage, hose connections, and a powerful ventilation system.

Please note: An air compressor is required for operation but is not included with this unit.

Ideal for:

Body Repair Shops / Engine & Parts Spraying / Custom Paintwork / Garage & Workshop Use

Specifications:

External Dimensions (H x W x D): 2100mm x 1200mm x 1100mm

Internal Dimensions (H x W x D): 1200mm x 1150mm x 1000mm

Turntable Diameter: 900mm

Turntable Weight Capacity: 150kg+

Material: Heavy-Duty British Galvanised Steel

Power Requirements: 16A Single Phase / 240V

Motor: Built-in 3HP / 2.2KW – 3000 RPM

Performance Features:

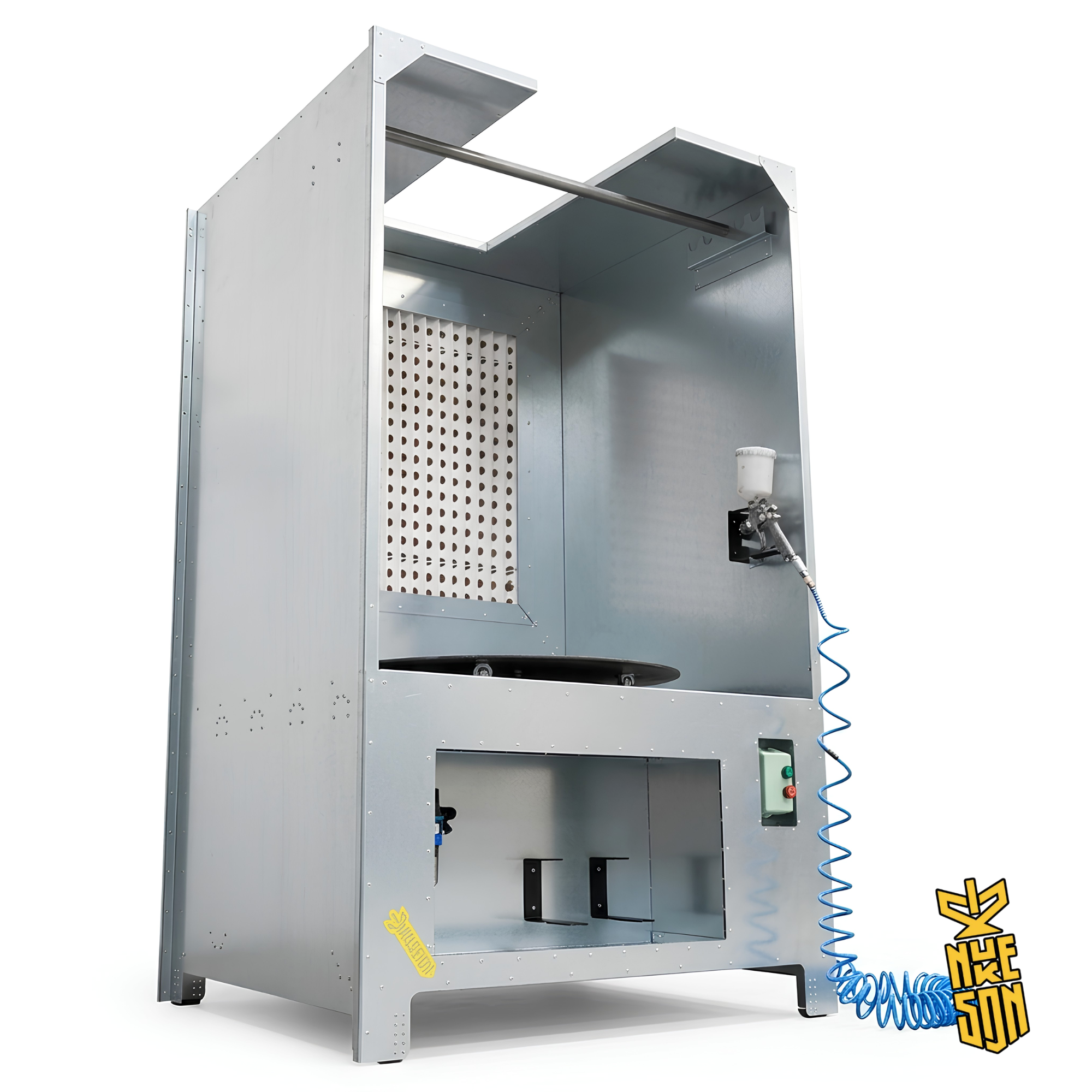

Crane-Loading Roof Opening: Spray larger, heavier items like engines with ease

Integrated Turntable: Rotate your part, not yourself—supports up to 150kg

Adjustable Hanging Bar: 1050mm overhead bar to hang items for full-access spraying

Built-in Spray Gun Support: Includes 3 x spray gun brackets and a 10mm hose line connection

Heavy-Duty Construction: Built in Norfolk from British galvanised steel, made to last

Ventilation & Filtering:

4300m³/h Airflow Fan – Built-in suction system for effective fume control

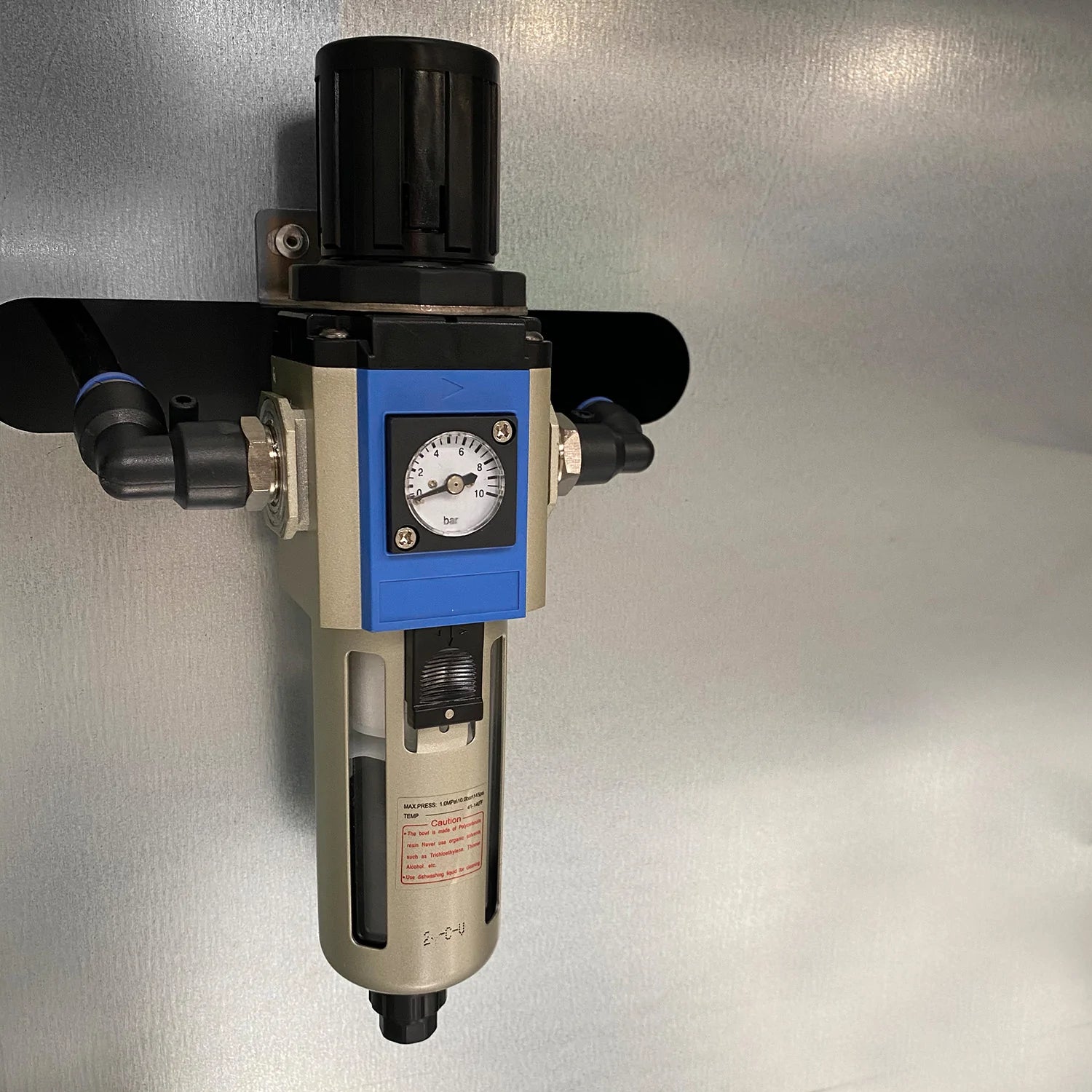

Air Pressure Regulator – Ensures consistent spray performance

300mm Vent Outlet – Ready for ducting installation

Rear-Mounted 900mm Paper Filter – 1x filter included (replacements available)

Download Data Sheets:

ID1635 Nukeson Spray Booth Instruction Manual

ID1635 Nukeson Spray Booth Filter Change Instruction Sheet

ID1635 Nukeson Spray Booth Fan Pressure Drop Data Sheet

Need Technical Advice?

Give Alan or Kris a call on 01842 558 062. We’ll help you choose and install the right spray booth for your space.

Special Considerations:

This booth requires a 16A single-phase power supply and will be delivered fully assembled on a pallet. Ensure suitable offloading support is available. Paints and spray guns not included. One paper filter is included per booth.

Order Lead Time:

Each Nukeson FORGE Spray Booth is hand-built to industrial standards. Please allow 10 working days for assembly and dispatch.

Shipping & Delivery:

Delivered by pallet with specialised freight handling. Additional delivery charges may apply. We'll keep you informed throughout the process.
