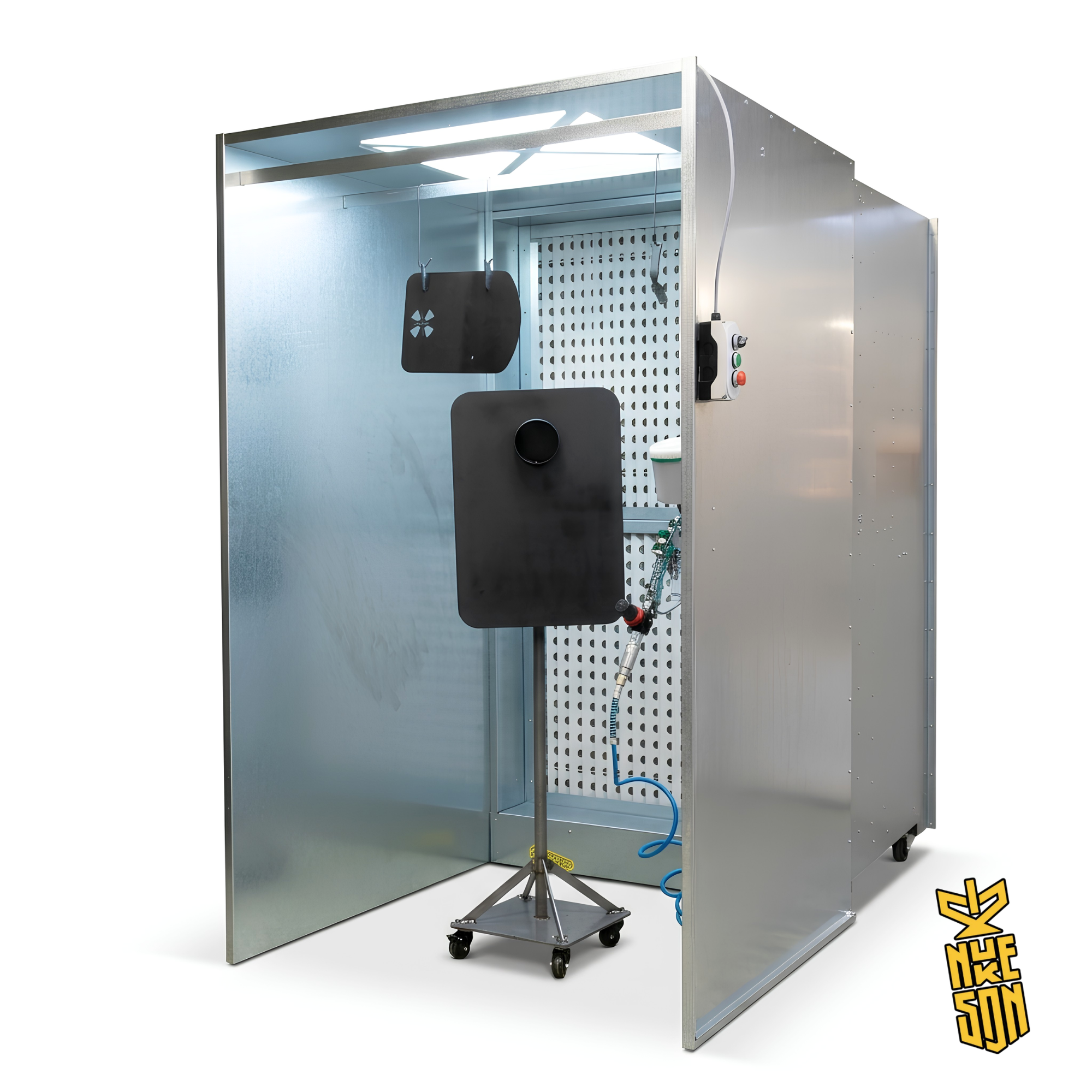

Nukeson Industrial Spray Booth with Full Height Opening

“Built for Large-Scale Spraying, Optimised Workflow, and Clean, Controlled Operation.”

The Nukeson Full Height Wet Spray Booth is engineered for spray painting larger parts and projects—whether you're operating in an industrial body shop or a personal garage setup. Built in the UK from heavy-duty galvanised steel, this unit is designed for serious use and minimal compromise.

This model features a full-height open floor design (no turntable), giving you maximum interior space to hang or stand large items. With dual 1050mm overhead hanging bars, integrated LED lighting, and a powerful extraction system, it’s the professional’s choice for unrestricted spray access.

Please note: An air compressor is required for operation but is not included with this unit.

Ideal for:

Body Repair Shops / Engine & Equipment Spraying / Garage Workshops / Large-Scale Spray Projects

Specifications:

External Dimensions (H x W x D): 2100mm x 1155mm x 2050mm

Internal Dimensions (H x W x D): 1920mm x 1100mm x 1200mm

Construction: British Galvanised Steel

Lighting: 600mm x 600mm LED Panel (pre-installed)

Overhead Hanging Bars: 2 x 1050mm adjustable

Control Panel: Integrated 24V system with dedicated lighting control

Power Supply: 3-Phase, 16A / 240V

Motor: 3KW – 3000 RPM

Assembly: Minimal – electrical, compressed air, and exhaust connections required

Performance Features:

Full Height Open Floor Design: Ideal for large items—maximum space, no turntable

Dual Hanging Bars: Easily suspend bulky parts with 2 x overhead 1050mm supports

Bright Overhead Lighting: Pre-installed LED panel for excellent visibility

Heavy-Duty Build: Designed and manufactured in Norfolk using UK-sourced steel

Easy Controls: Control panel with separate light switch for convenience

Ventilation & Filtering:

Built-in Extraction System – Manages fumes effectively and safely

Built-in Air Pressure Regulator – Includes push-in fittings for easy connection

400mm Ventilation Outlet – Located on top, ready for ducting

Rear-Mounted 900mm Paper Filter – 1x filter included (replacements available)

Need Technical Advice?

Give us a call on 01842 558 062. We’ll help you spec the right booth and answer any install queries.

Special Considerations:

This product requires a 3-phase 16A power supply and minimal assembly upon delivery. You will need to connect electrical, compressed air, and ventilation systems. Paints and spray guns are not included. One paper filter supplied per unit.

Need more space? Multiple booths can be linked together to form extended bays. Get in touch to discuss compatible parts.

Order Lead Time:

Each Nukeson spray booth is made to order by our Norfolk team. Please allow 10 working days for build and preparation before dispatch.

Shipping & Delivery:

Delivered on a pallet with specialised freight handling. Additional delivery fees may apply. We’ll keep you updated throughout the process.
