Nukeson FAB – Plasma Downdraft Extraction Cutting Bench

Industrial Dust & Fume Extraction Workbench

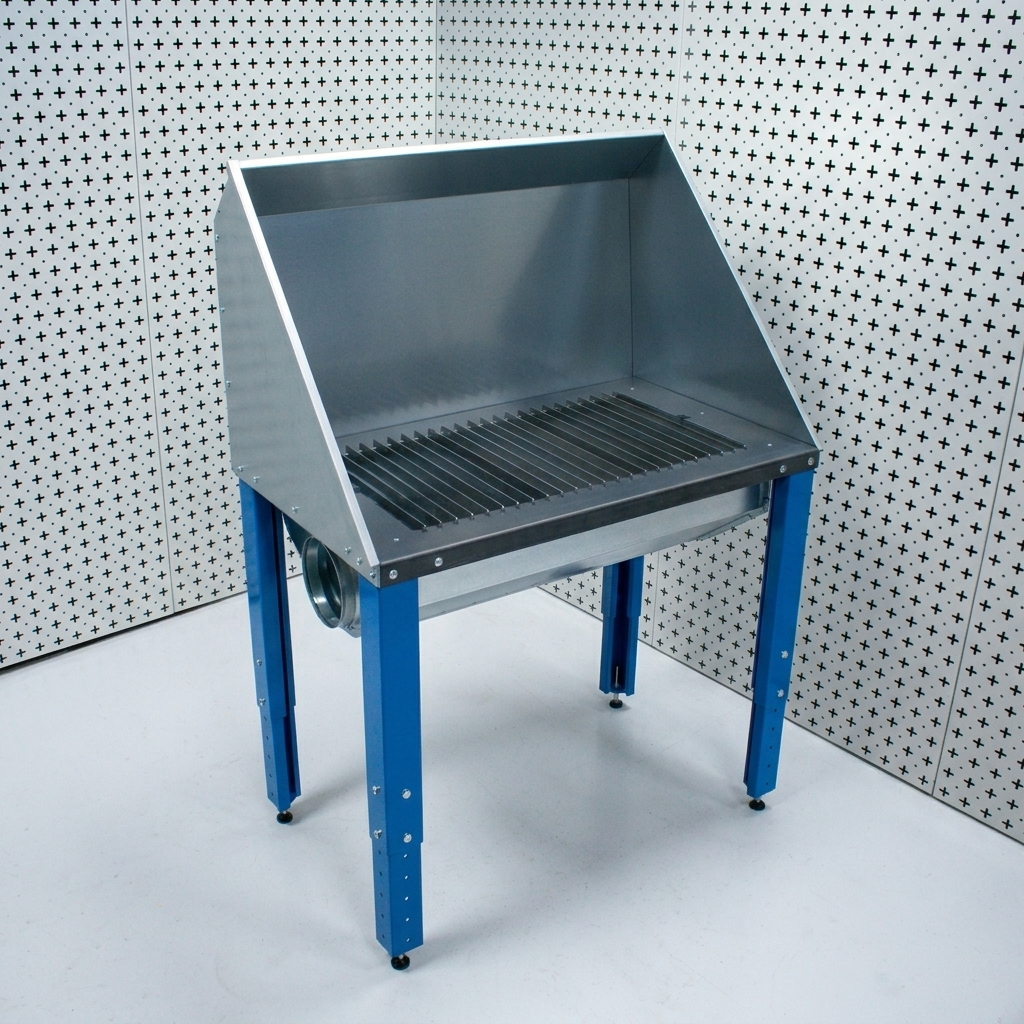

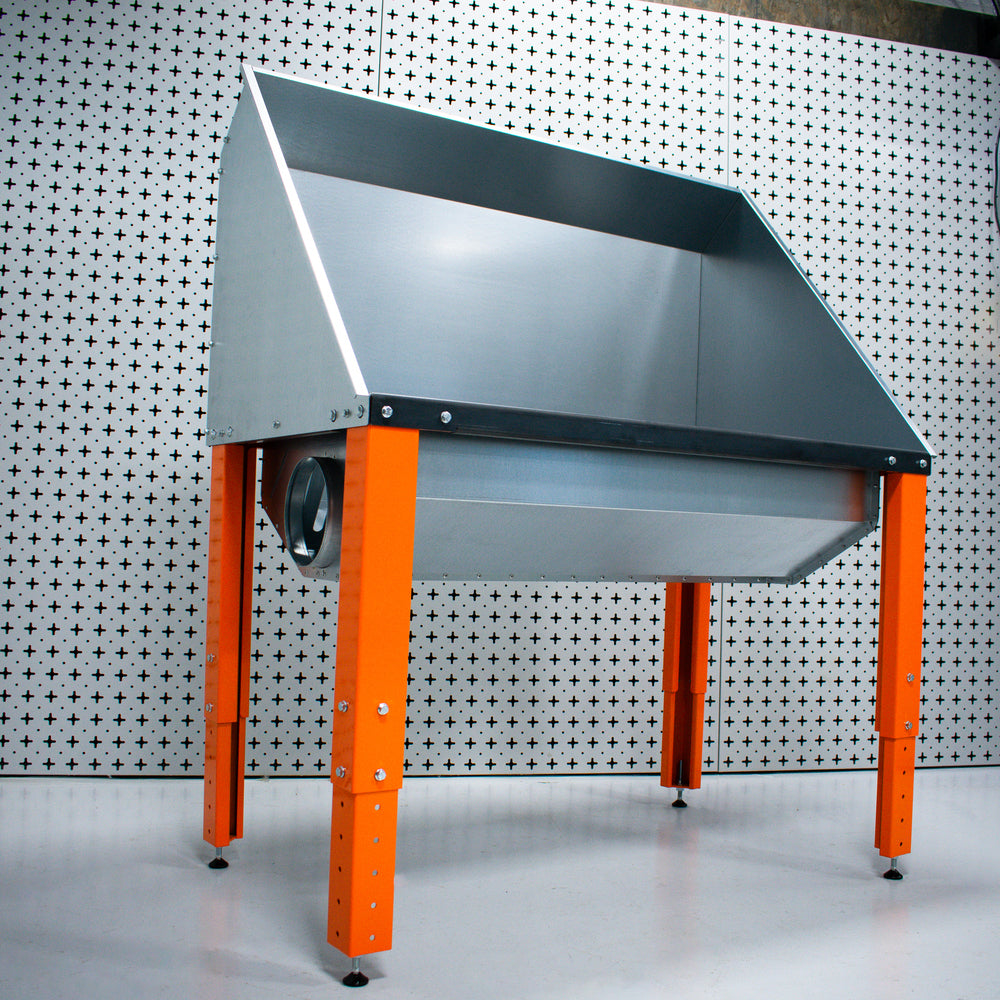

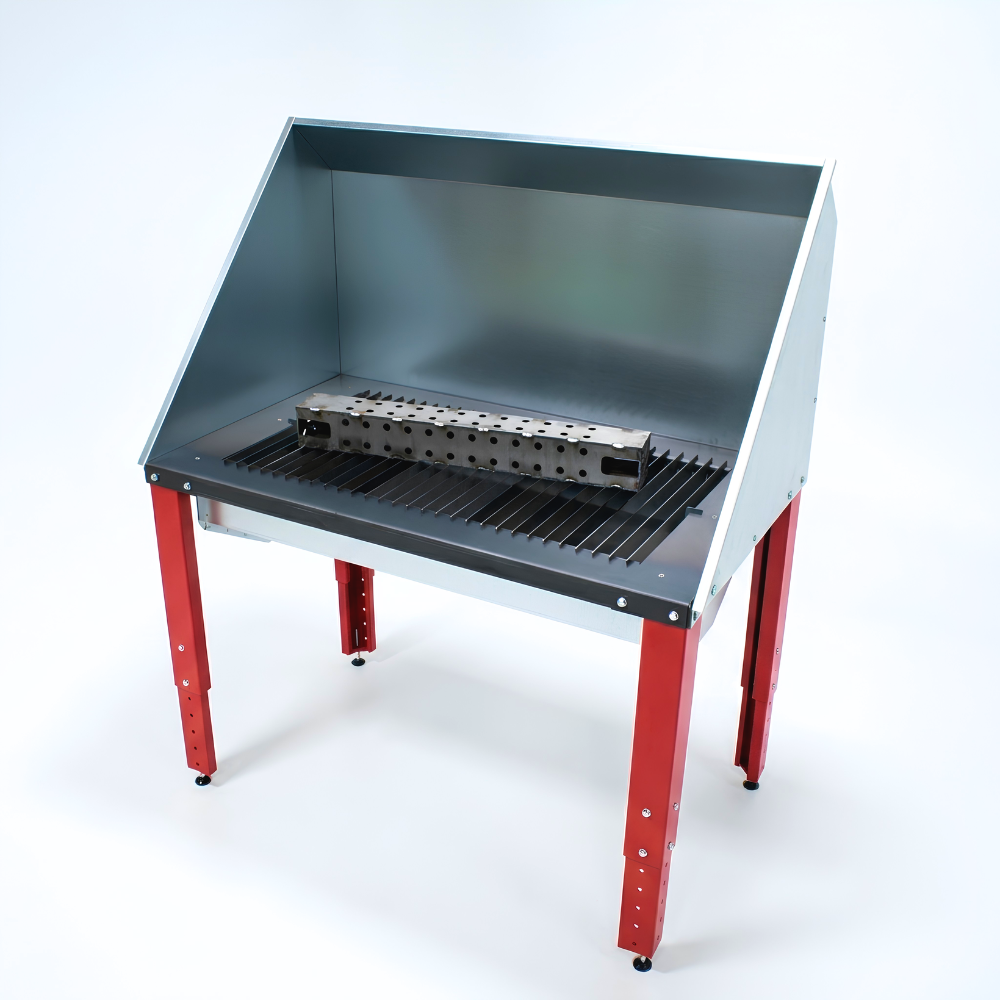

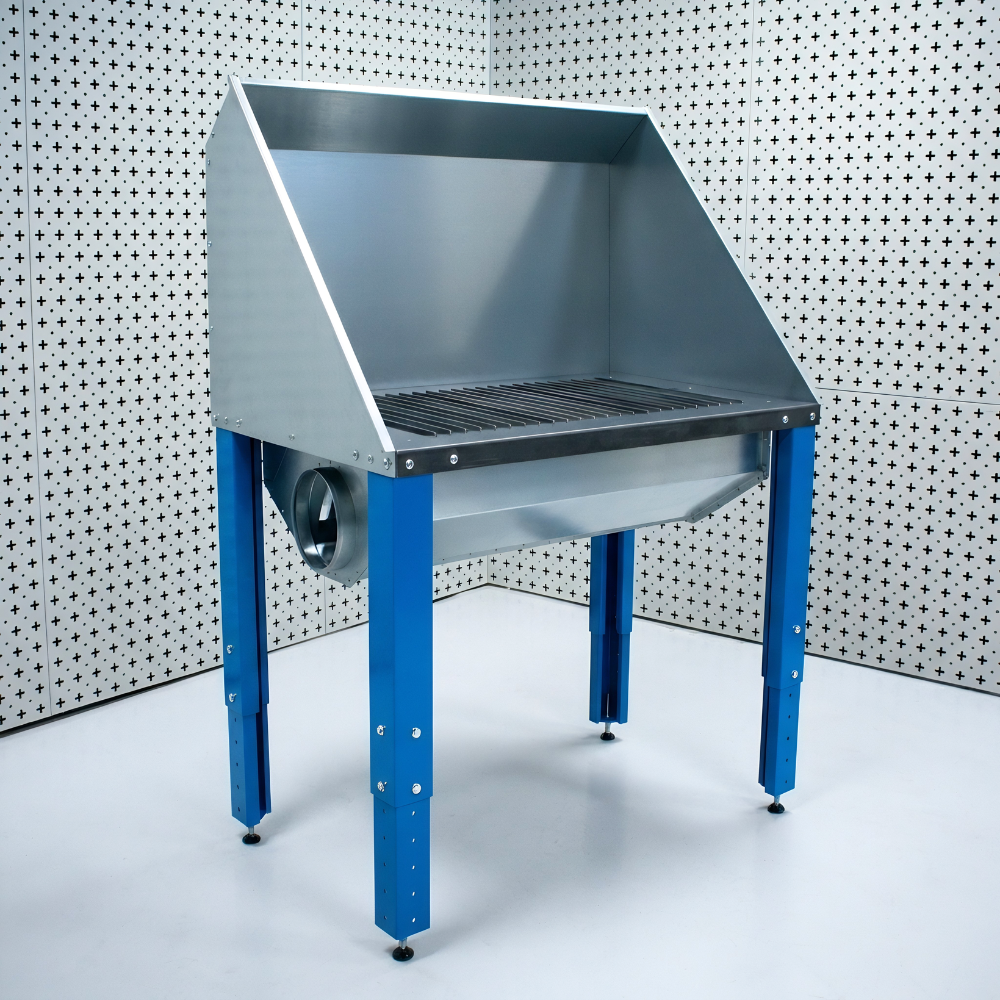

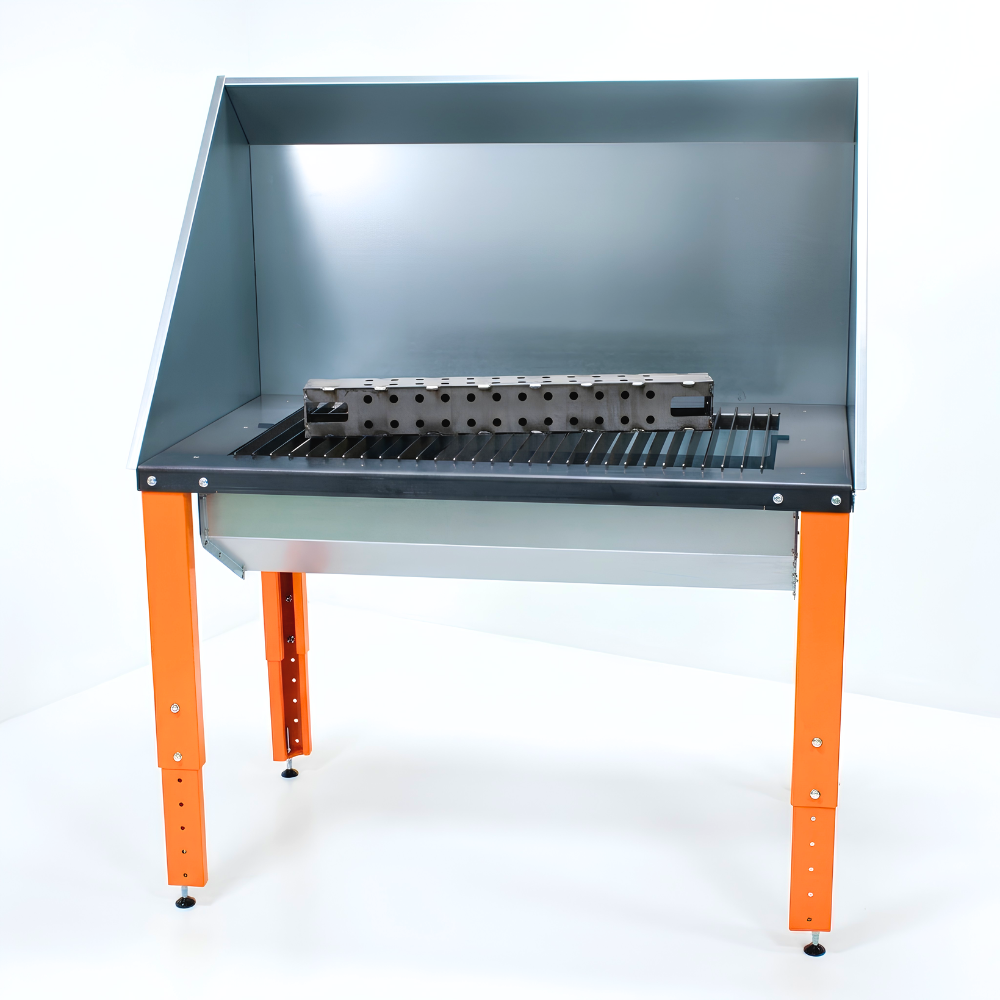

The Nukeson FAB Plasma Downdraft Extraction Cutting Bench is a heavy duty workbench designed to capture dust, fumes, and cutting byproducts directly at the source, improving safety and cleanliness in workshop and industrial environments.

Made to order with a typical lead time of 5–7 working days, each unit is built for demanding applications such as plasma cutting, grinding, sanding, welding preparation, metal fabrication, and woodworking. By controlling airborne particles and fumes at bench level, the table helps create a safer and more controlled working environment.

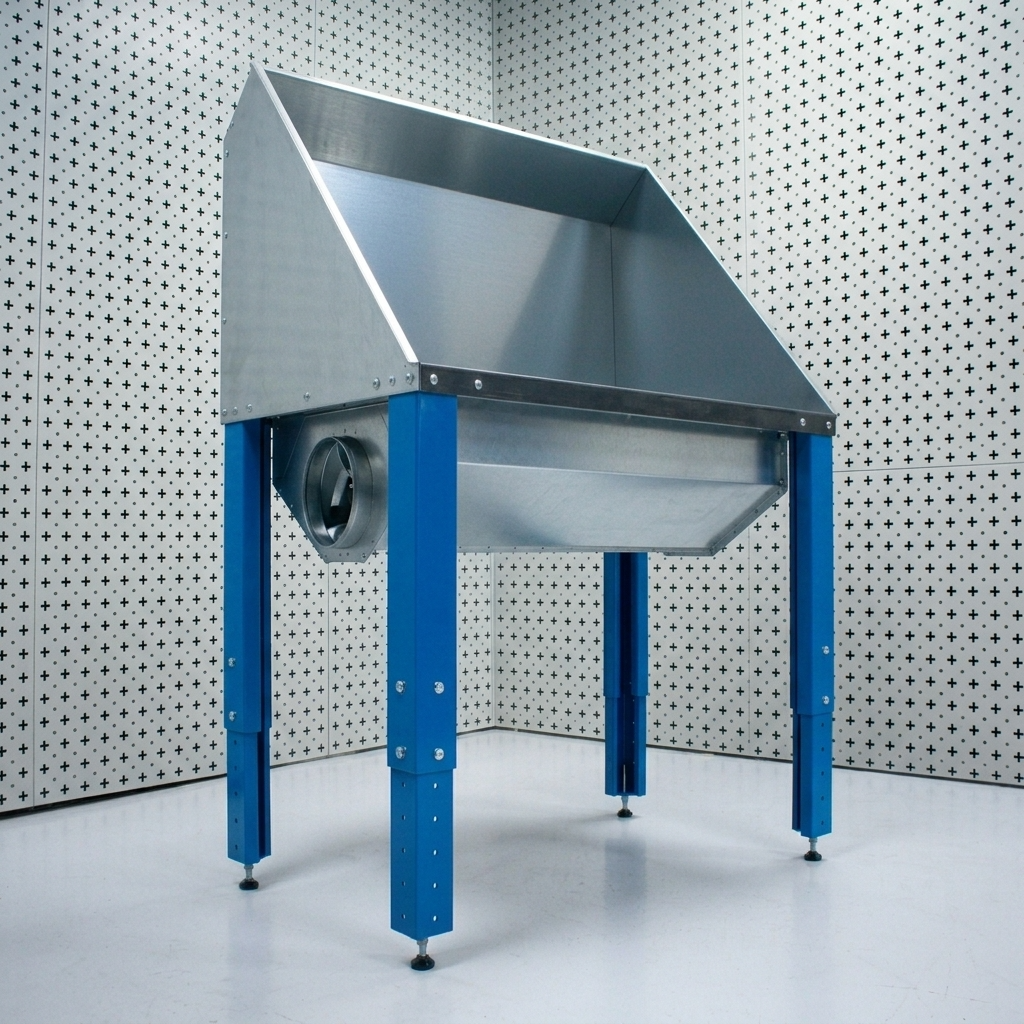

Designed as part of a complete extraction system, the downdraft cutting bench supports effective dust and fume management when connected to suitable ducting. The integrated back wall helps contain sparks and airborne particles, while the perforated work surface allows debris and slag to be captured below the working area.

The robust steel construction ensures long-term durability, even in high-heat and heavy-use applications. The removable grid allows quick and easy cleaning of the internal collection area, helping maintain performance and efficiency.

Supplied fully assembled, the bench is ready for installation, making it a practical and reliable addition to workshops, fabrication areas, and production environments.

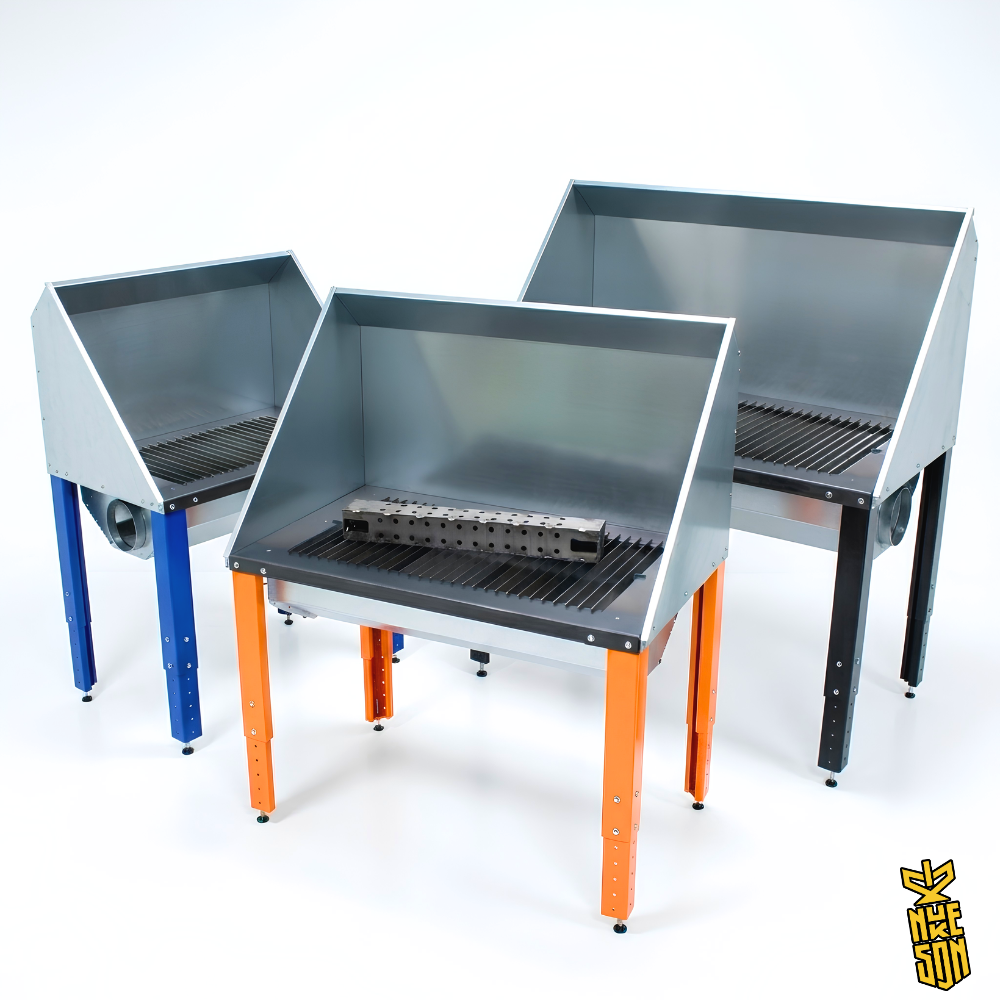

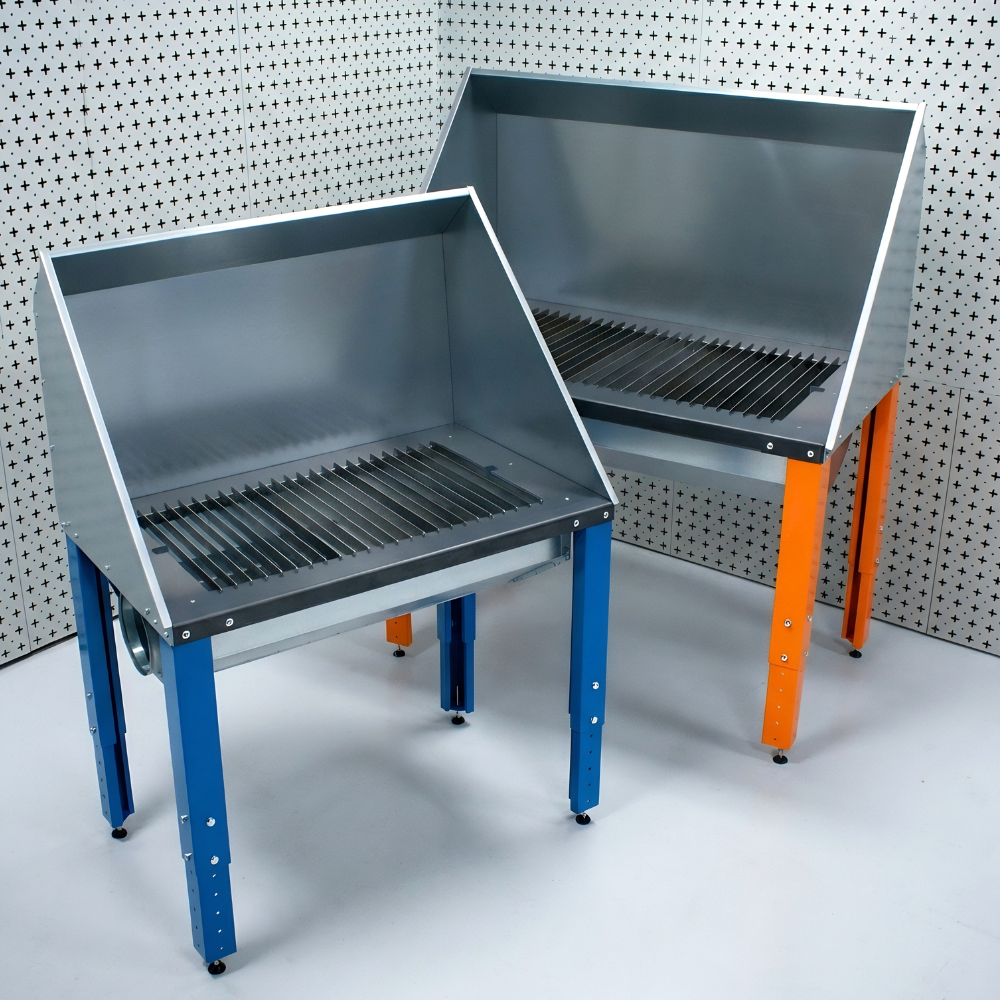

Available Sizes

• 1000 × 600 mm – 150 mm extraction outlet
• 1300 × 750 mm – 200 mm extraction outlet
• 1600 × 1000 mm – 250 mm extraction outlet

Key Features

• Made to order (5–7 working days) – built for industrial use
• Fully assembled – ready for installation
• Suitable for plasma cutting and fabrication applications
• Multiple outlet sizes – 150 mm, 200 mm, or 250 mm, depending on model

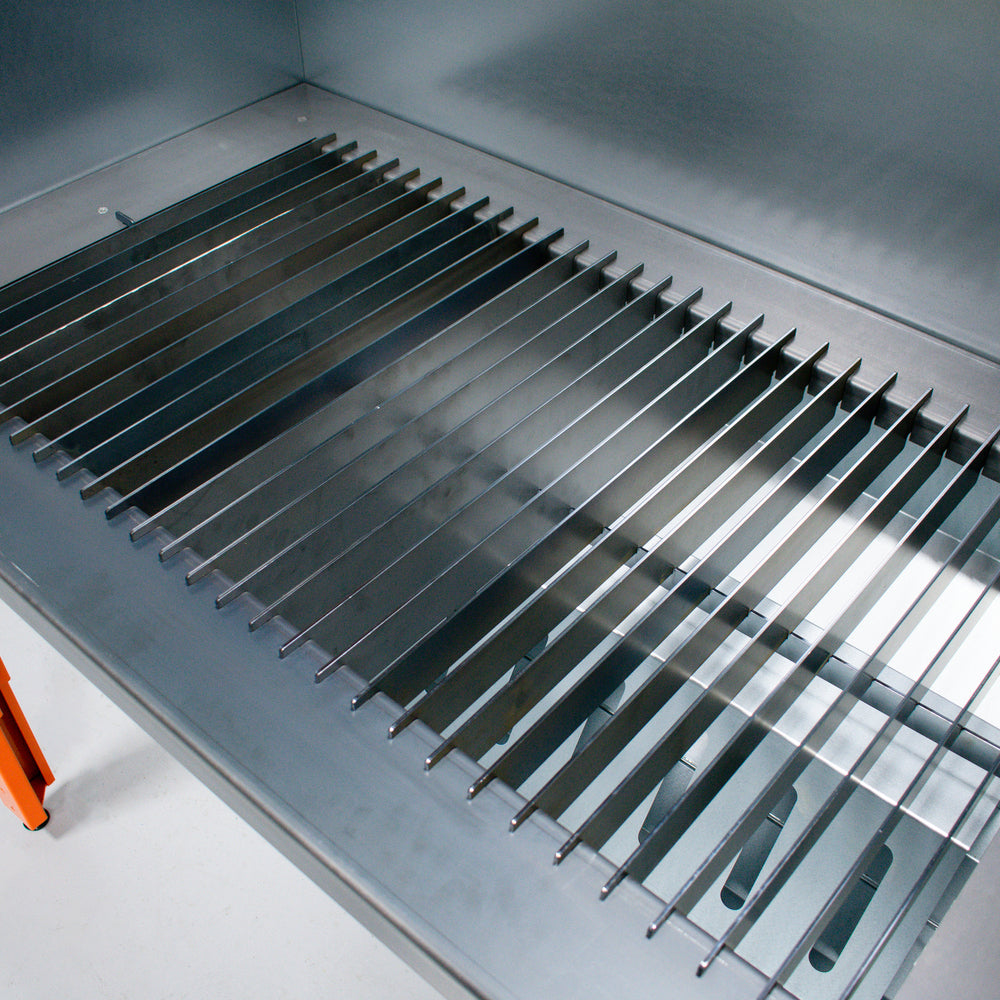

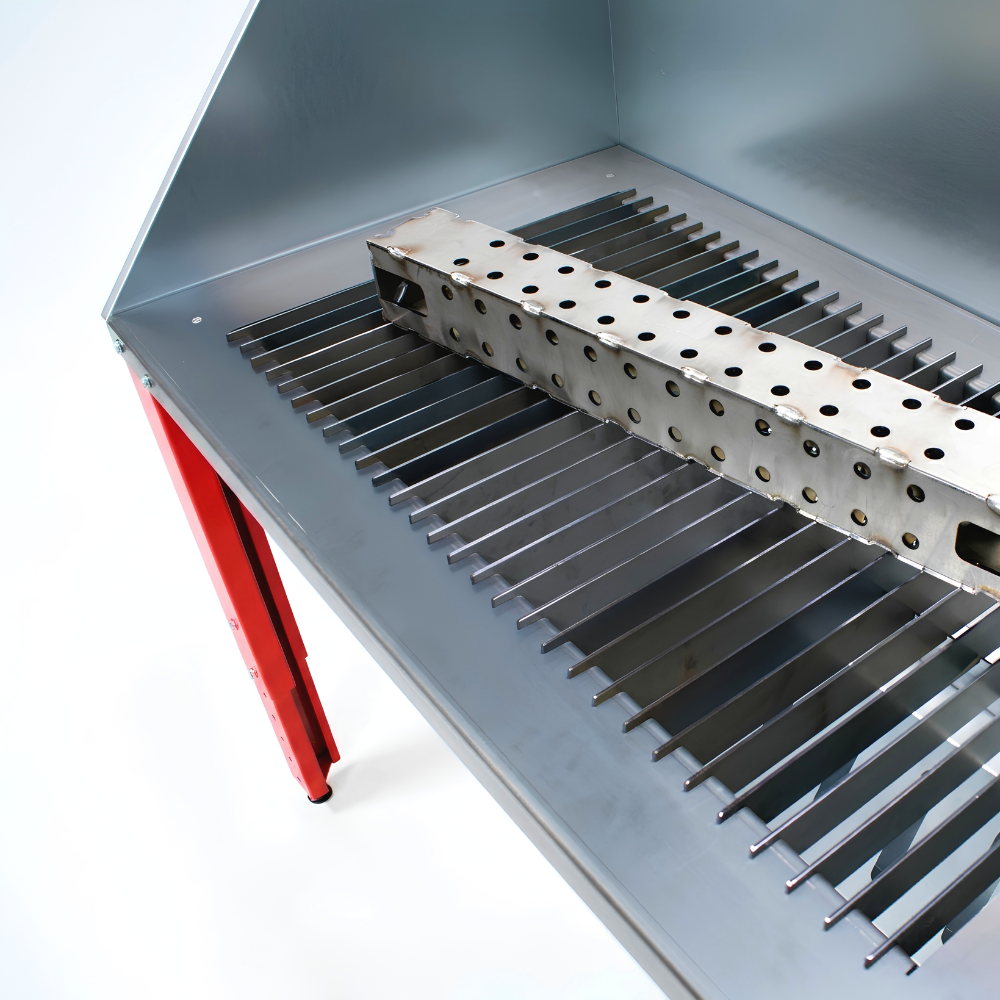

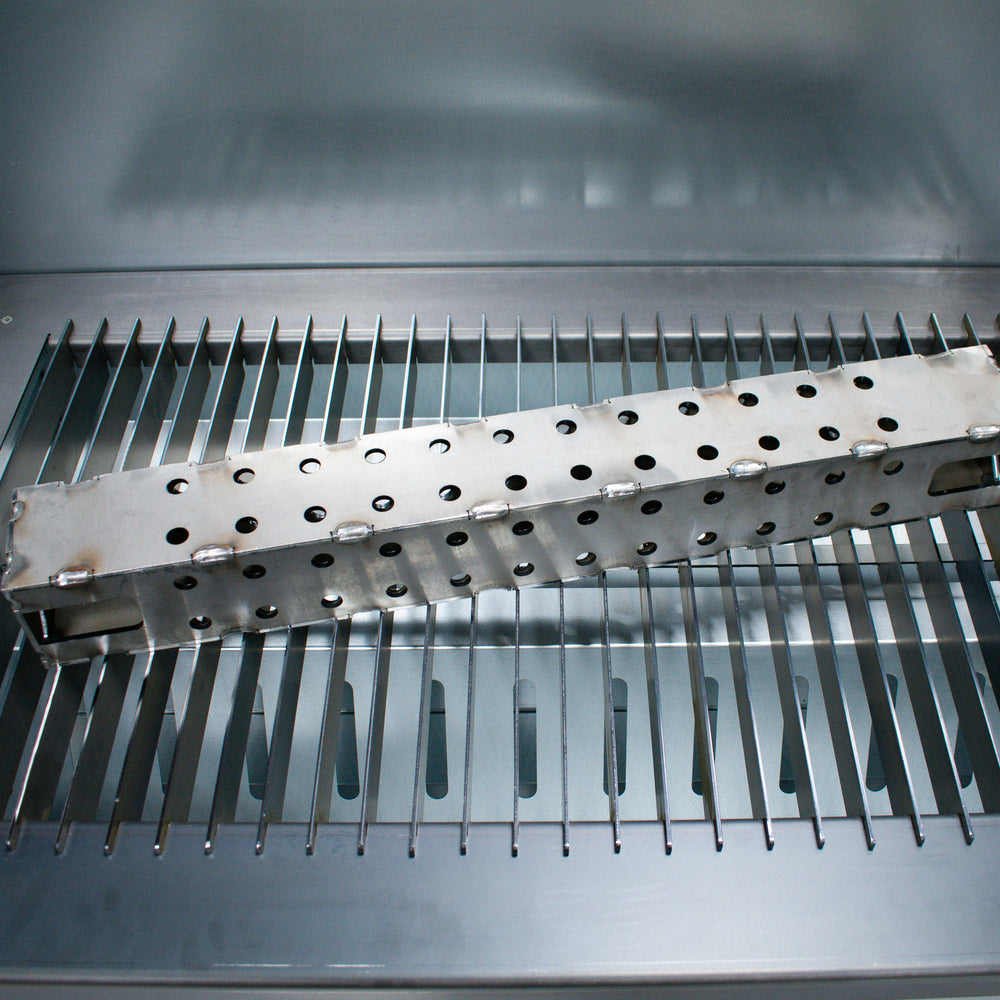

• Removable steel bars – allowing fast cleaning & replacing
• Integrated back wall – helps contain sparks, dust, and fumes
• Adjustable height (600 – 1000 mm) – ergonomic working position
• Heavy-duty steel construction – powder-coated for durability

Specifications & Setup

• Work Area: Multiple sizes available (see options above)
• Cleaning: Removable steel bars with easy access

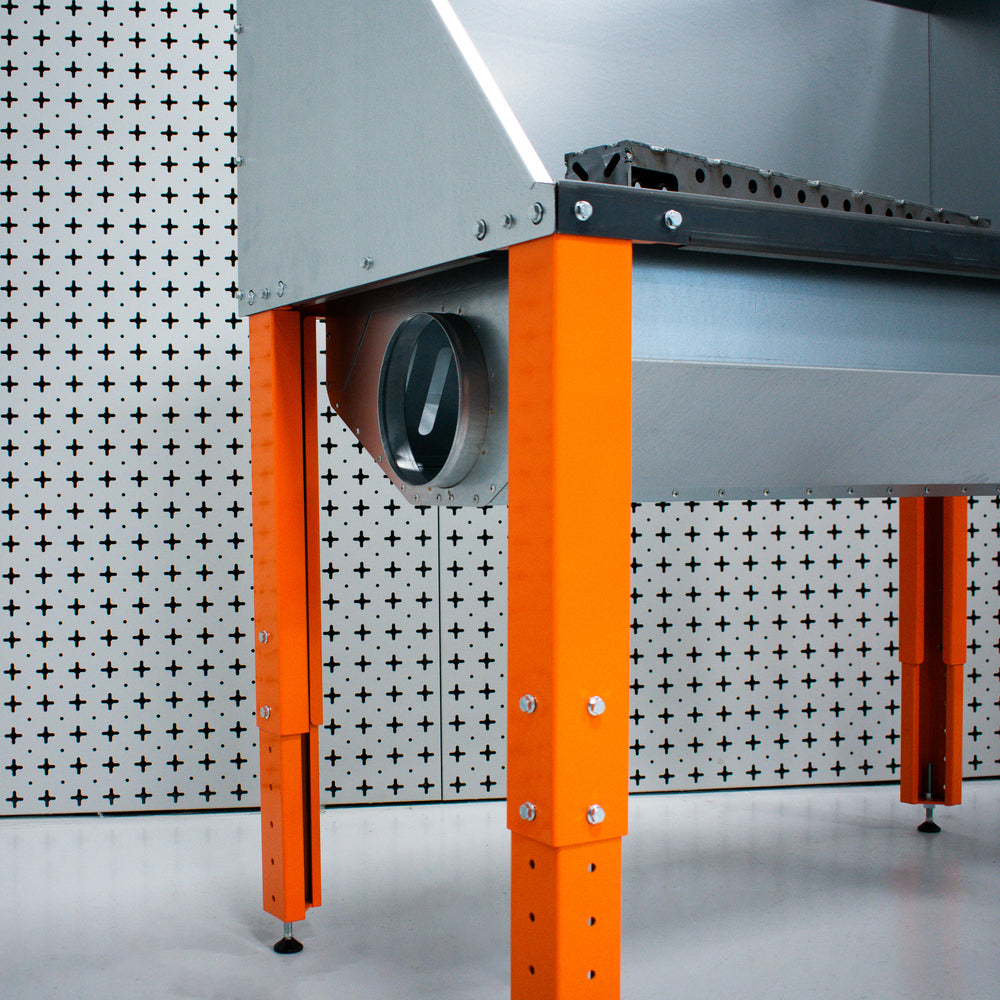

• Extraction Outlet: 150 mm / 200 mm / 250 mm (depending on size)

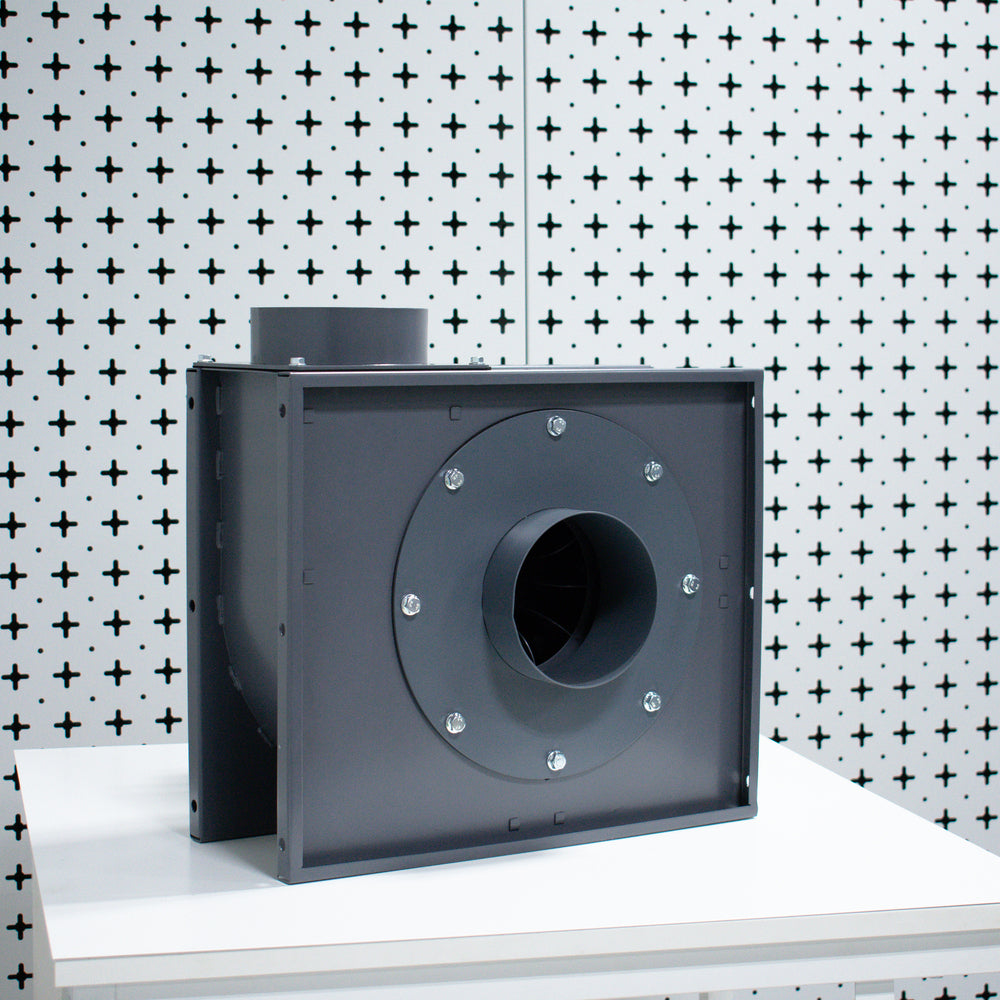

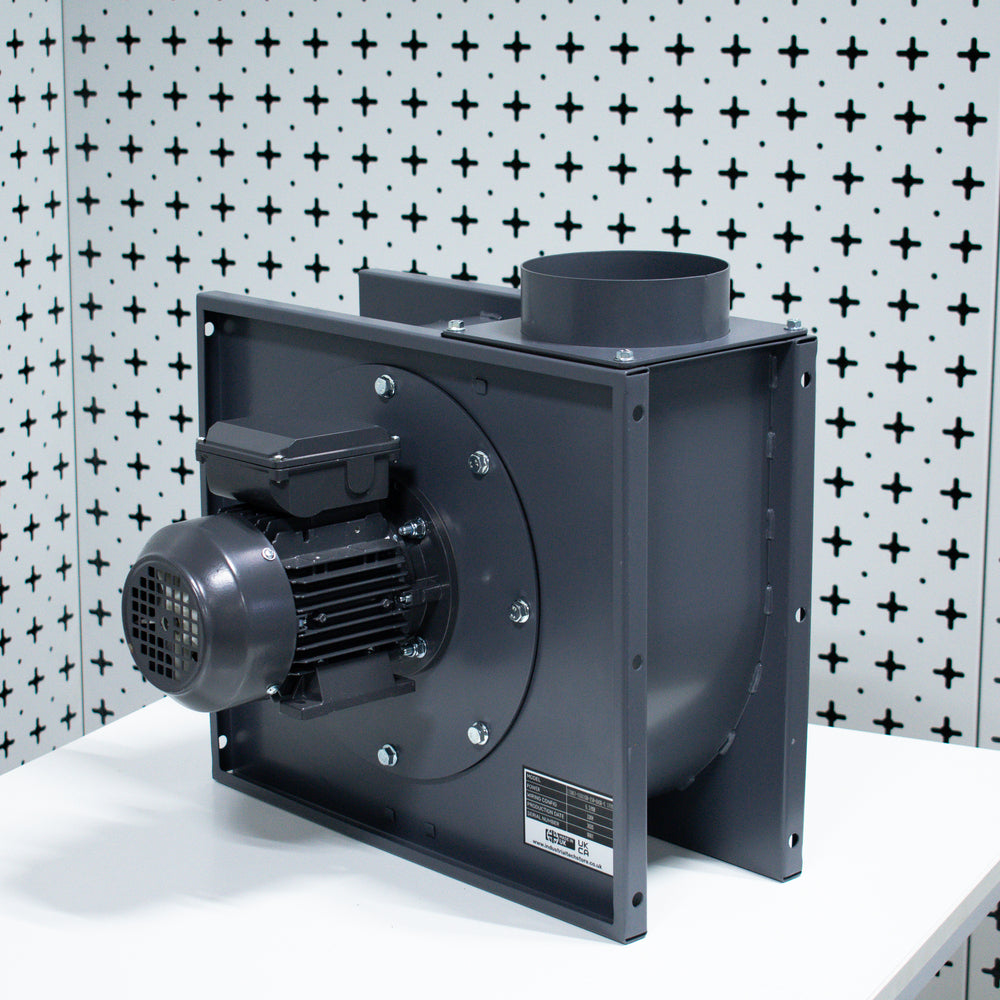

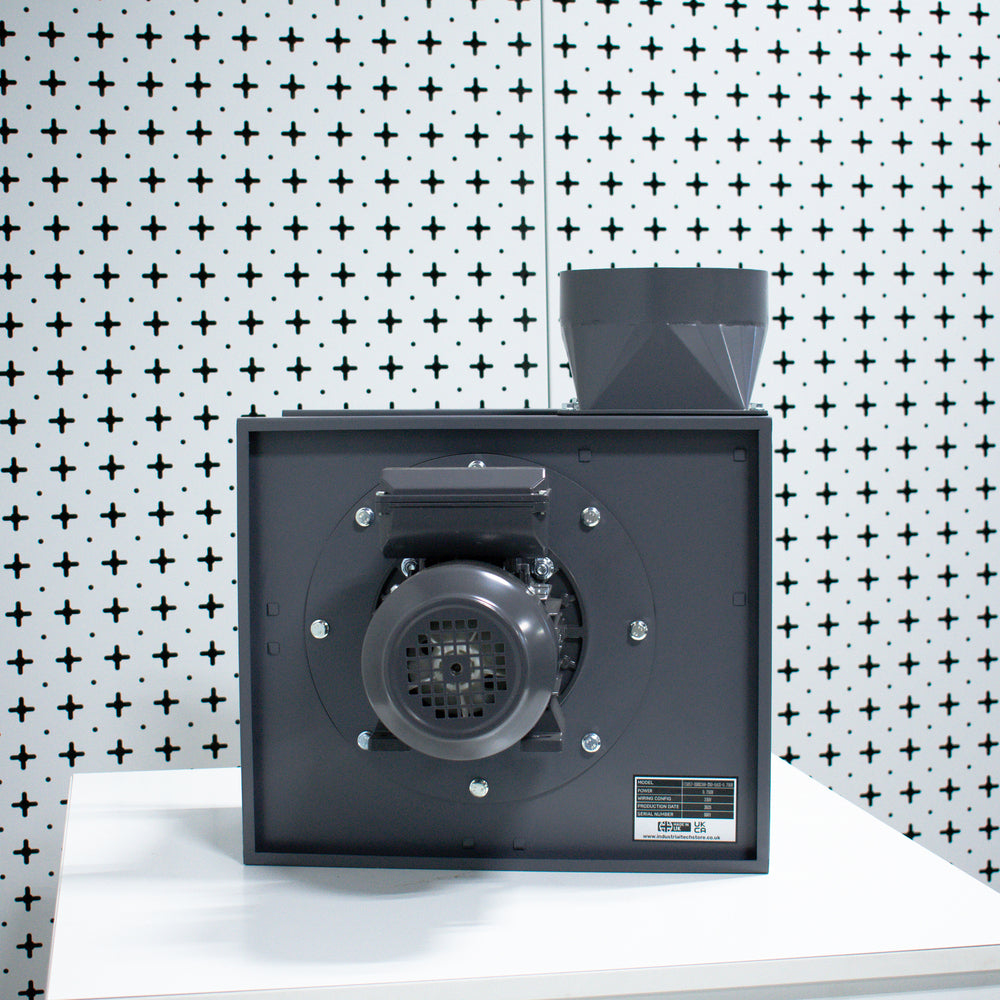

• Fan: Not included

This downdraft plasma cutting bench is designed to operate as part of a complete extraction system. For effective performance, ensure it is connected to a suitable setup matched to your application and working conditions.

Typical Airflow Guidelines

• 1000 × 600 mm: approx. 1200–1800 m³/h
• 1300 × 750 mm: approx. 2000–2500 m³/h
• 1600 × 1000 mm: approx. 3000–4000 m³/h

Why Choose Nukeson FAB?

Nukeson FAB designs and manufactures industrial equipment in the UK, focusing on durability, practical design, and reliable long-term performance. Each product is built for real working environments where safety, efficiency, and strength matter.

Need Technical Help?

Please call us on 01842 558 062.
