Fan & Motor Switching Panel (DOL Starter)

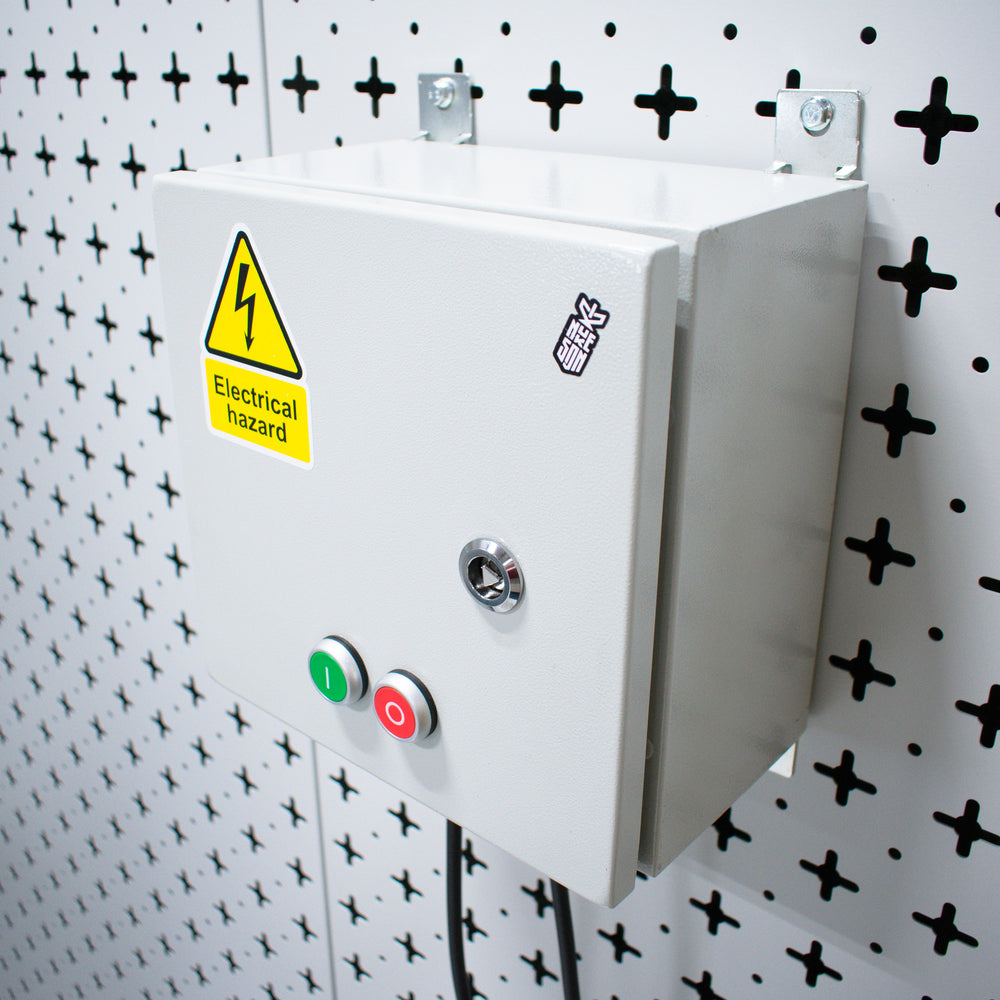

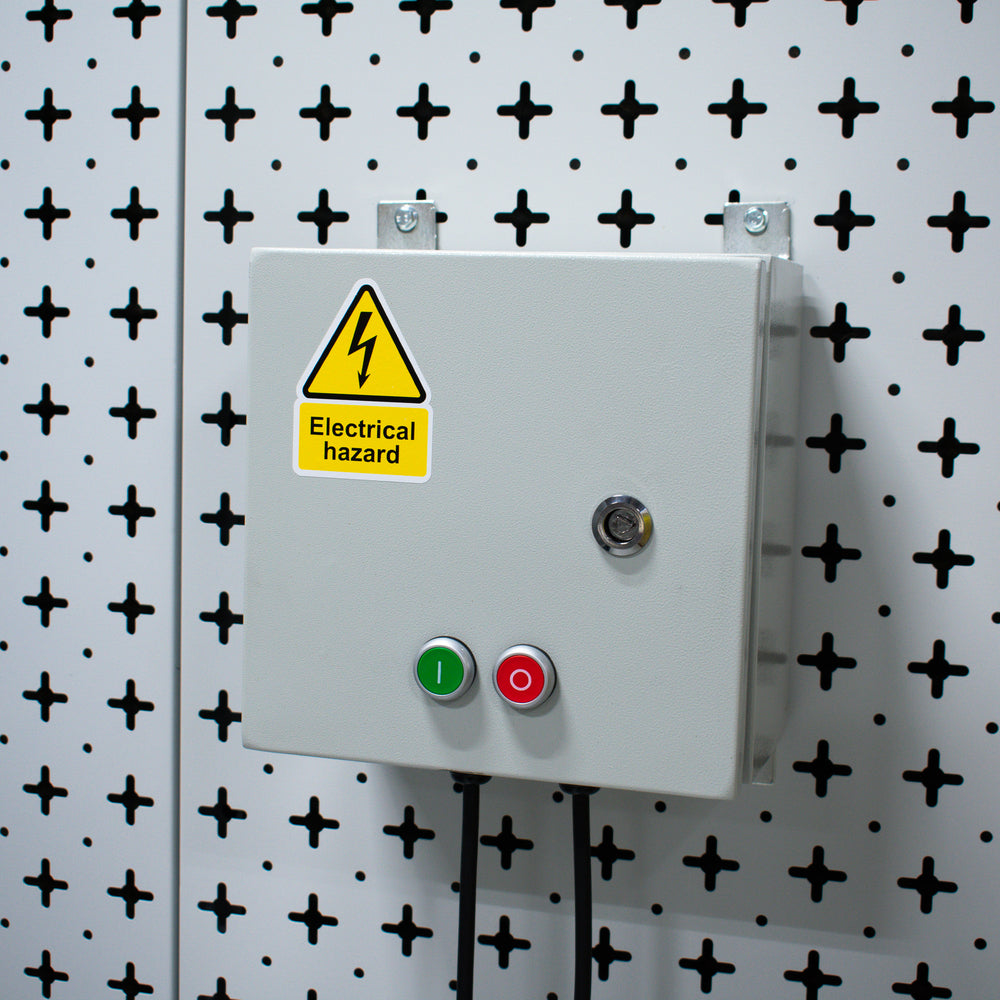

DOL Motor Starter (IP65 Enclosure) – Built to Order

Configure your motor starter exactly to your requirements using the options above. Each unit is built to order, allowing you to select motor size, supply type, cable length, and connection method in one simple setup.

This DOL motor starter provides a reliable and cost-effective solution for controlling motors such as fans, extraction systems, and general workshop equipment.

Key Features

• Heavy-duty IP65 metal enclosure for industrial environments
• Direct-On-Line (DOL) starting for simple and dependable operation
• Integrated thermal overload protection, set to match selected motor
• Supplied with an integrated rotary isolator switch, allowing safe and convenient local isolation of the power supply during operation and maintenance.
• Available for 230V single phase and 400V three phase
• Configurable cable length and connection type
• Pre-wired and assembled for consistent quality
• Built using branded components where possible
• Built to order in the UK (lead time 5–7 working days)

Fully Configurable Build

Use the dropdown options to configure your unit:

• Supply voltage (single phase or three phase)
• Motor size (kW)
• Cable length
• Plug or hardwired connection

Each configuration is assembled and tested before dispatch, ensuring it arrives ready for installation.

Simple Installation

The starter is supplied pre-wired based on your selected configuration. With cable and connection options chosen at checkout, installation is straightforward and requires minimal setup on site.

Matched to Your Motor

All components are selected to suit the chosen motor size. The overload protection is set during assembly, ensuring safe and reliable operation without the need for adjustment.

Possible Uses / Applications

• Extraction and ventilation fans
• Grinding and downdraft tables
• Workshop machinery
• General motor control applications

Important Information

• Requires correctly rated upstream protection (MCB or fuse)
• Not suitable for hazardous environments
• Installation should be carried out by a competent person

Built for Practical Use

This motor starter is designed to provide simple, reliable motor control, with all key options integrated into one easy configuration process. It is an ideal solution where fast installation, durability, and flexibility are required.
