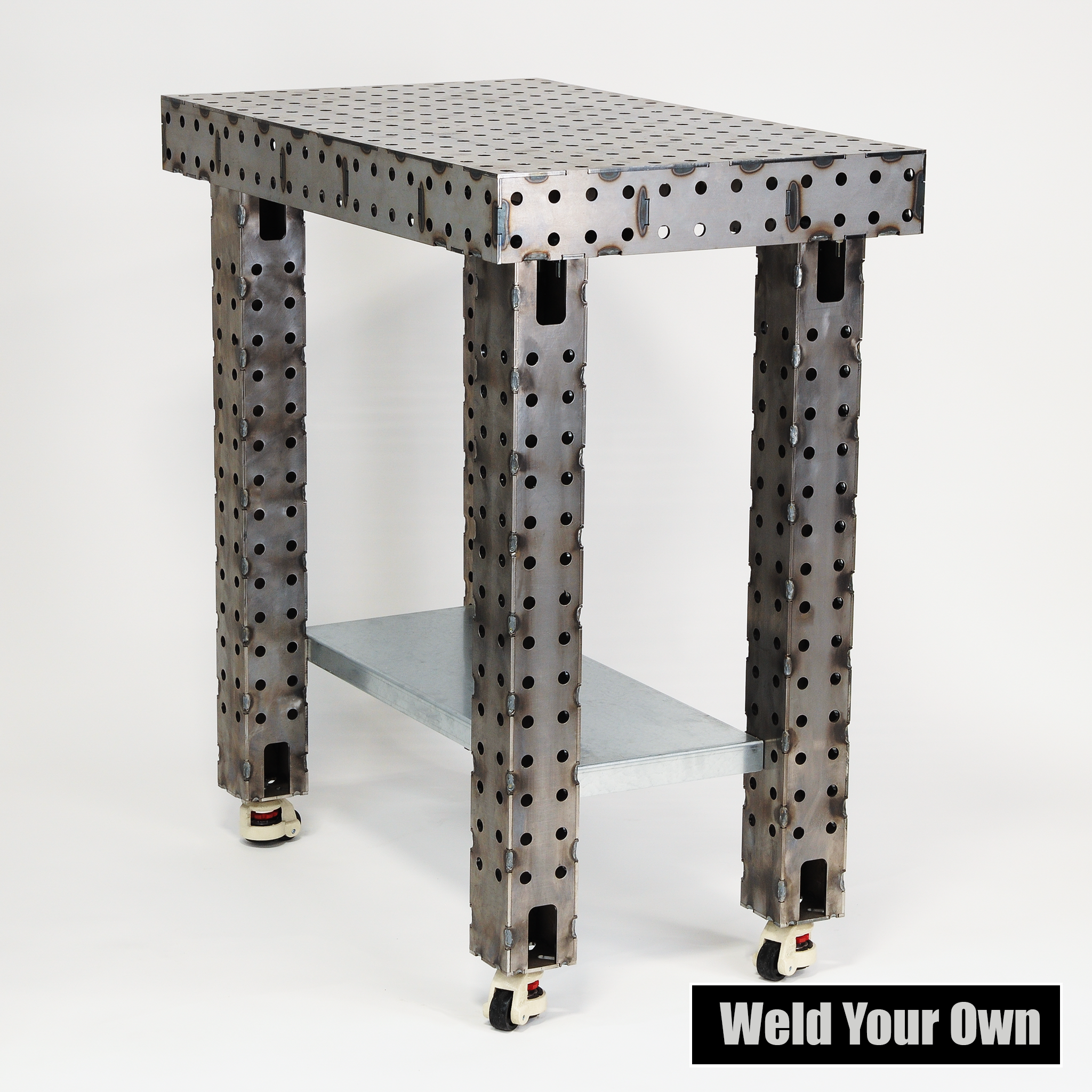

Nukeson FAB– Self-Assembly Fabrication Table (1000 × 600 mm)

UK-Made. Fully Laser-Cut. Ready to Weld.

Build It Yourself. Built to Last.

The Nukeson FAB Self-Assembly Fabrication Table is a premium-quality, heavy-duty workbench kit — designed and manufactured in our Norfolk factory — that you weld together yourself.

This kit arrives with the tabletop section already pre assembled , so all top components are correctly positioned. Simply clamp, align, and weld the top into a rigid unit before moving on to the legs and accessories.

Once you’ve completed the top, you’ll align and weld the legs, bolt them to the top, fit the heavy-duty lockable castors, and finally fit the lower shelf. It’s a hands-on fabrication project that rewards you with a rock-solid, precision welding and fabrication station.

Perfect for use as a jig table, welding bench, machine stand, or compact base for drill presses, mills, and robots,

This table also makes an ideal project for anyone looking to sharpen their welding skills while building something functional. With its D16 16mm compatible hole grid and rugged steel construction, it’s just as at home in a professional fabrication shop as it is in a training bay or garage workspace.

Key Features

• Made in Norfolk, UK — Designed, laser-cut, and pre-assembled in-house for accurate fit-up and top-notch quality.

• Pre-Assembled Top Section Ready for Welding — Cross-braced, laser-cut tabletop simplifies setup — just clamp, align, and weld into a single unit.

• Laser-Cut Sheet Metal Legs (Weld & Bolt) — Strong  design with a matching hole pattern allows for accessories and vertical clamping; legs bolt onto the top once welded.

• 1000 mm × 600 mm Working Surface — Compact footprint with serious strength.

• 100 mm Thick Cross-Braced Tabletop — Dead-flat and heat-resistant under load.

• Precision 16 mm Hole Grid (50 mm × 50 mm) — D16-standard pattern for unlimited jig, fixture, and clamp possibilities.

• Integrated Lower Storage Shelf — Sturdy bolt-in steel shelf keeps your tools, welder, or stock material close to hand.

• Heavy-Duty Lockable Castors Included — Move it easily, lock it in place for rock-solid work.

Your Assembly Steps

1. Clamp & align the pre-assembled top then weld all top components.

2. Weld together the laser-cut legs.

3. Bolt legs to the tabletop.

4. Attach the lockable castors.

5. Fit the lower shelf.

Choose Your Table Height

Available in four final heights (floor to top surface, once castors are fitted):

• 800 mm

• 900 mm

• 1000 mm

• 1100 mm

Select the leg height kit that matches your ideal working position.

Technical Specifications

• Top Size: 1000 mm (W) × 600 mm (D)

• Top Thickness: 100 mm (cross-braced, pre-assembled)

• Material: Laser-cut 5 mm mild steel

• Hole Diameter: 16 mm (D16 standard)

• Hole Spacing: 50 mm × 50 mm

• Legs: Laser-cut sheet panels for welding, then bolted to top

• Shelf: Bolt-in lower steel platform

• Castors: 4 × heavy-duty lockable wheels

• Delivery: Palletised kit with top pre-assembled

• Lead Time: Built to order — allow up to 7 working days

Handling Note

This is a heavy-duty kit delivered on a pallet.
