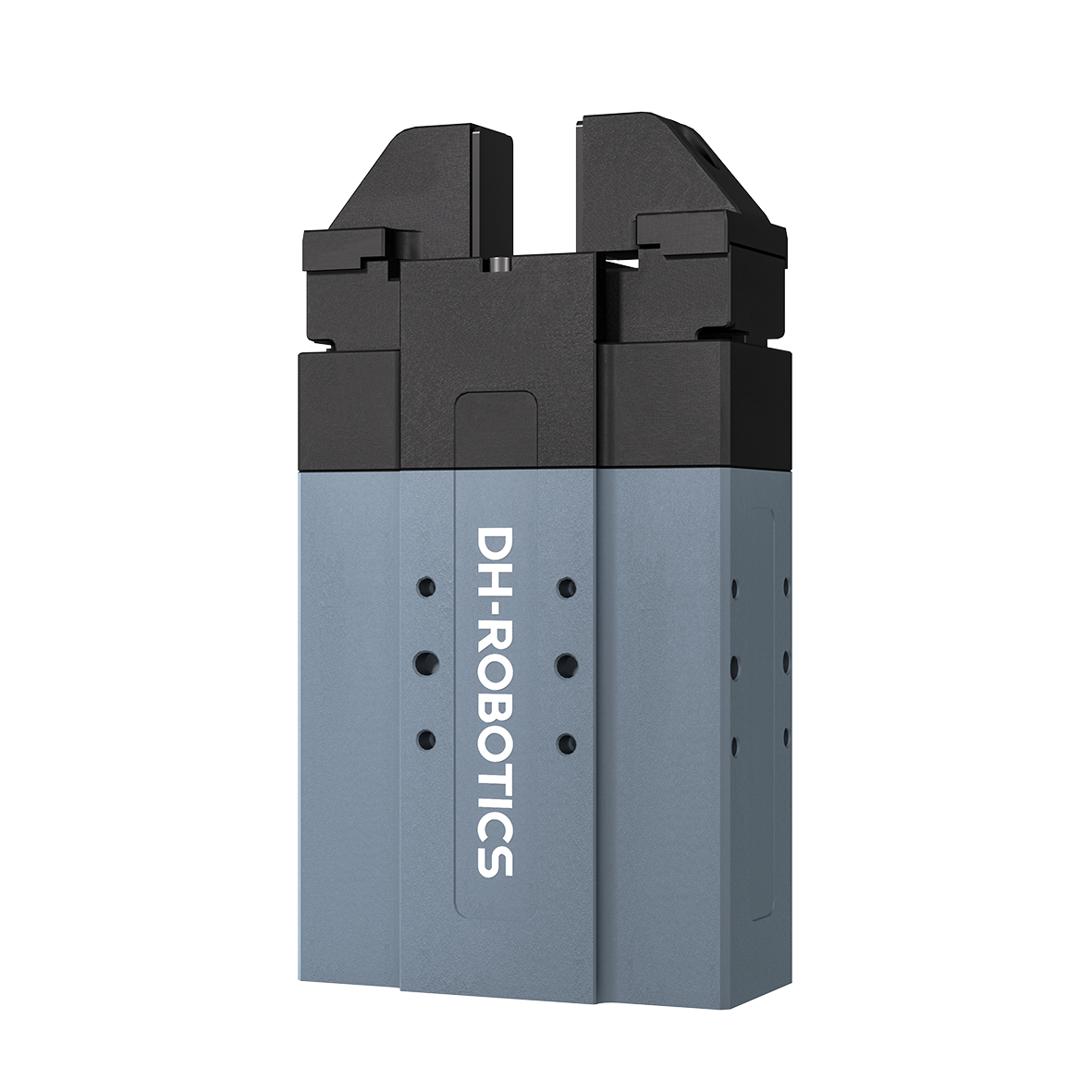

DH‑Robotics PGE‑8‑14 Slim‑Type Electric Parallel Gripper

DH‑Robotics PGE‑8‑14 Slim‑Type Electric Parallel Gripper

The PGE‑8‑14 is an ultra-compact electric parallel gripper, purpose-built for precision automation in space-limited environments. With a slim 18 mm profile, this gripper fits seamlessly into tight installations, ideal for applications like electronics assembly, inspection, and delicate part handling.

It delivers a gripping force of 2–8 N per jaw and supports payloads up to 0.1 kg with a 14 mm stroke, offering versatility for handling a wide range of small parts. The gripper achieves ± 0.02 mm repeatability, ensuring consistent, accurate positioning, and operates quietly at under 40 dB, making it suitable for collaborative workspaces.

A built-in controller reduces the need for external electronics, simplifying setup and integration. Standard communication includes Modbus RTU (RS‑485) and digital I/O, with optional support for advanced protocols such as TCP/IP, USB 2.0, CAN 2.0A, PROFINET, and EtherCAT.

Weighing only 0.4 kg and measuring approximately 97 × 62 × 31 mm, the PGE‑8‑14 is lightweight, compact, and efficient. It features fast open/close speeds of 0.2 s, and is rated IP40 for protection in clean, controlled industrial environments.

Technical Specifications – PGE‑8‑14

The PGE‑8‑14 is a dependable choice for compact, high-speed applications that require precision gripping of small or fragile components.
