DH-Robotics PGC Series – Collaborative Electric Parallel Grippers
The PGC Series from DH-Robotics is a high-performance range of electric parallel grippers designed specifically for collaborative robots. Offering a balance of strength, precision, and smart control, these grippers are ideal for applications such as machine tending, electronics handling, lab automation, and light assembly.
Each model in the series features smooth, low-noise operation (<50 dB), high repeatability (±0.03 mm), and integrated control electronics—eliminating the need for external controllers and simplifying system integration. Communication options include Modbus RTU (RS-485) and digital I/O as standard, with optional support for EtherCAT, PROFINET, TCP/IP, USB 2.0, and CAN 2.0A for advanced connectivity.
With robust design, IP-rated protection, and versatile gripping capabilities, the PGC Series delivers reliable performance in a compact, easy-to-deploy package.
PGC Series – Model Comparison
| Model | Gripping Force (per jaw) | Stroke | Max Payload | Opening/Closing Time | Repeat Accuracy | Weight | IP Rating |
|---|---|---|---|---|---|---|---|

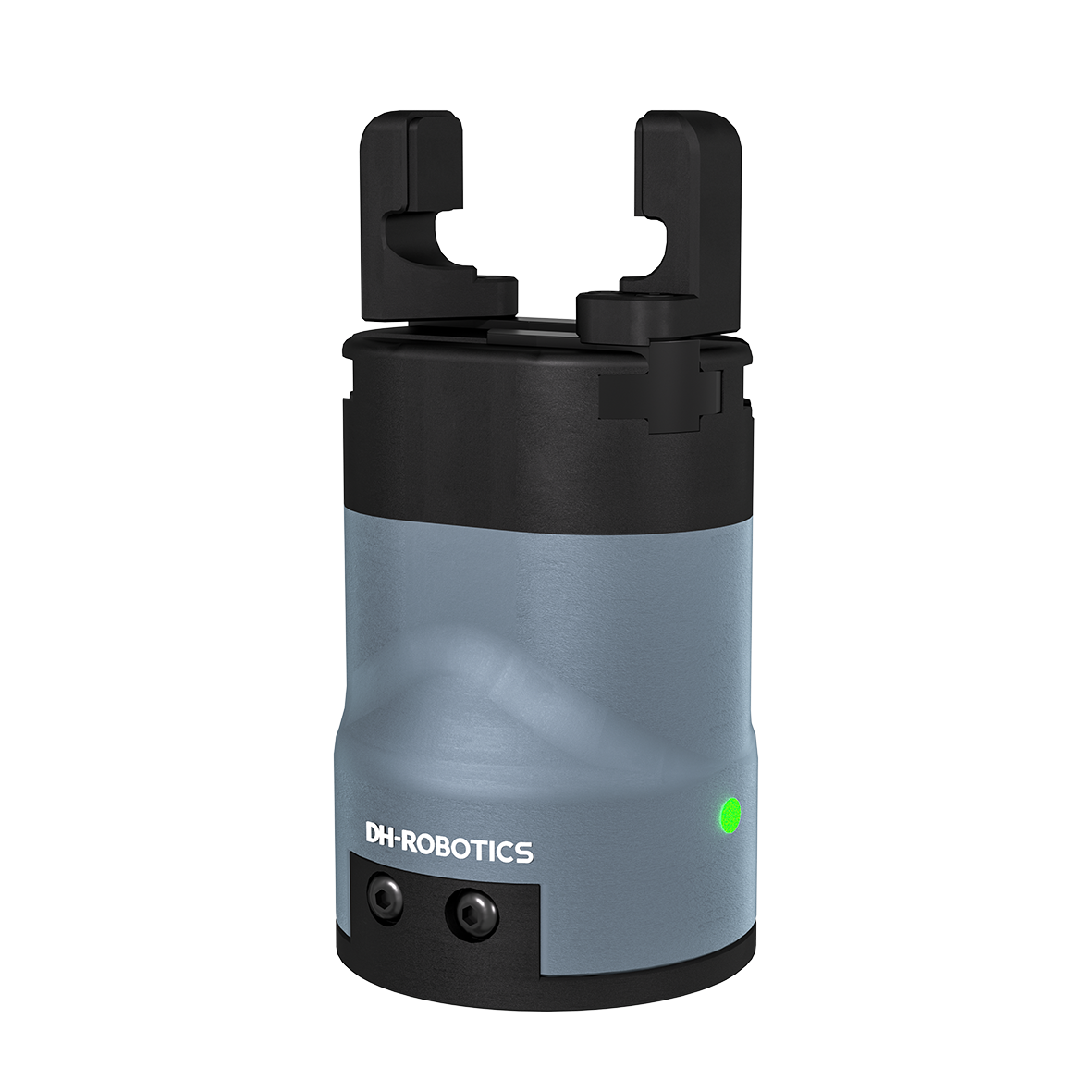

| PGC-50-35 | 15–50 N | 37 mm | 1 kg | 0.7 s / 0.7 s | ± 0.03 mm | 0.5 kg | IP54 |

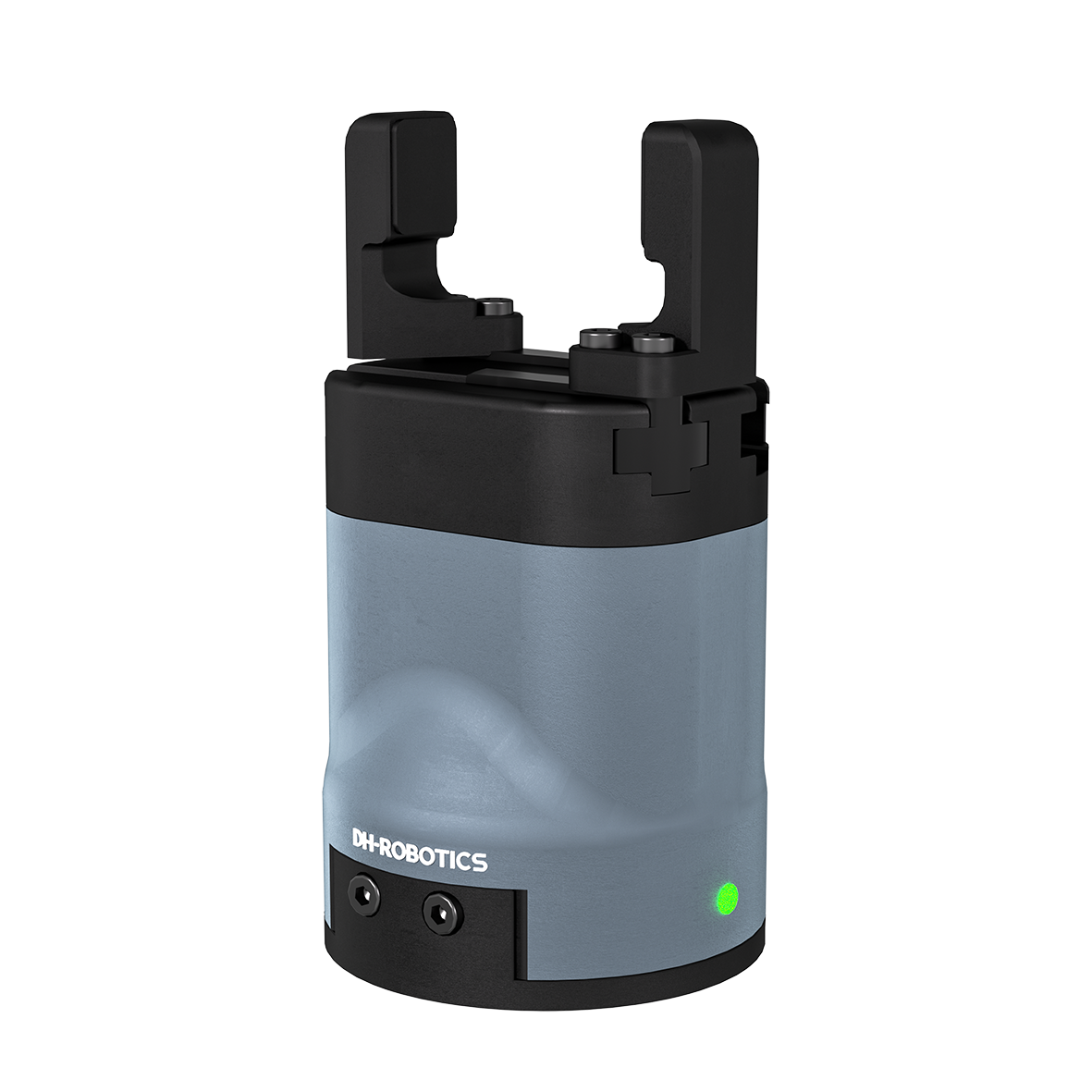

| PGC-140-50 | 40–140 N | 50 mm | 3 kg | 0.6 s / 0.6 s | ± 0.03 mm | 1 kg | IP67 |

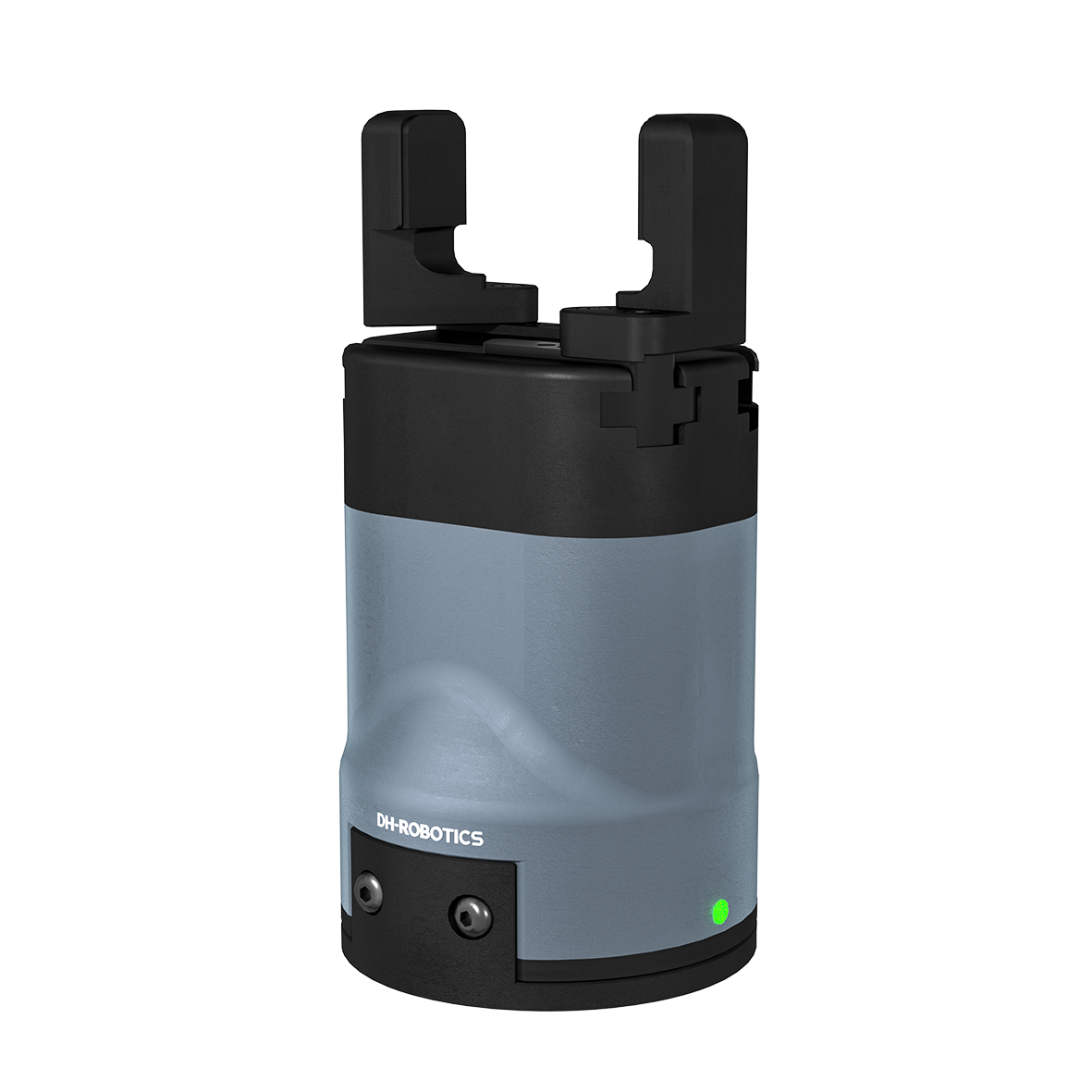

| PGC-300-60 | 80–300 N | 60 mm | 6 kg | 0.8 s / 0.8 s | ± 0.03 mm | 1.5 kg | IP67 |
Why Choose the PGC Series?
-
Scalable force for a wide range of applications
-
Compact, lightweight, and easy to integrate
-
High durability with IP54–IP67 protection
-
Built-in controller and flexible communication protocols
-
Consistently accurate and quiet operation
Whether you're looking for delicate handling or high-force gripping, the PGC Series offers a versatile, ready-to-deploy solution across multiple use cases.
